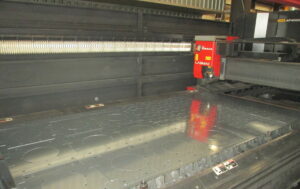

Amada Laser – FO 3015NT
FO 3015NT Standard Features
The FO 3015NT is designed and engineered to cut all types of material reliably, and economically in a full range of thicknesses up to 5/8″.
- Maximize utilization with minimal setup between jobs
- High speed processing of thin and thick materials
- X-Axis “dual drive” rack & pinion gantry for precise location
- High-speed pallet shuttle
- 5′ x 10′ maximum sheet size
- 3150 IPM maximum X- and Y-axis speed (4454 IPM max. at 45° vector)
- 2362 IPM maximum Z-axis speed
- 4000-watt CO2 laser source
